— Technology Comparison
Fuel Cell vs Semiconductor Breathalyzers
Which Alcohol Sensor Technology Is Right for Your Application?Fuel cell and semiconductor sensors can both detect alcohol in exhaled breath, but they use different sensing principles and offer different characteristics in selectivity, warm-up behavior, repeatability, stability, cost and intended application.
Fuel Cell
ELECTROCHEMICAL
Alcohol is oxidized at the sensing surface, generating a measurable electrical current.
Ethanol → Electrochemical Reaction → Electrical Current
Semiconductor
RESISTANCE-BASED
Alcohol affects the electrical characteristics of a heated sensing material.
Alcohol / VOCs → Heated Material → Resistance Change
Measurement principles
Two Sensor Technologies, Two Different Measurement Principles
Both technologies can be used to detect alcohol, but the way each sensor converts exposure to alcohol into an electrical signal is fundamentally different.
Electrochemical Measurement
Fuel Cell Sensor
A fuel cell alcohol sensor uses an electrochemical reaction to detect ethanol. When alcohol molecules reach the catalytic sensing surface, they are oxidized and generate a small electrical current related to the alcohol level in the breath sample.
- Exhaled breath enters the sensor
- Ethanol reaches the catalytic surface
- Electrochemical reaction occurs
- Electrical current is generated
- Signal is converted into an alcohol reading

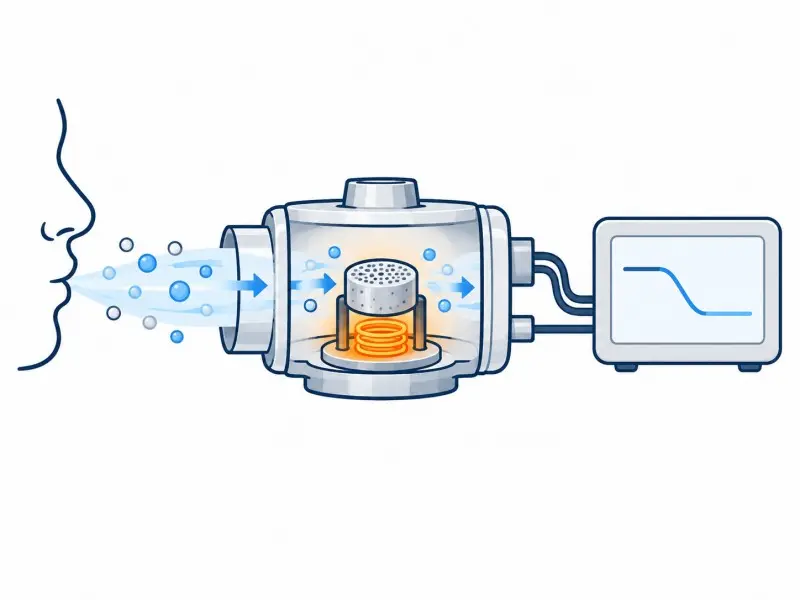

Resistance-Based Measurement
Semiconductor Sensor
A semiconductor alcohol sensor uses a heated sensing material whose electrical characteristics change when exposed to alcohol and other reactive gases. The instrument measures this change and processes it into an estimated alcohol concentration.
- Exhaled breath reaches the heated sensing layer
- Alcohol and reactive gases interact with the material
- Electrical resistance changes
- Electronics capture the response
- Signal is converted into an alcohol reading
Side-by-side comparison
Fuel Cell vs Semiconductor: Key Differences
The right sensor depends on the intended use. Fuel cell sensors are generally preferred when selectivity, repeatability and professional positioning matter more than lowest cost.
| Comparison | Fuel Cell / Electrochemical | Semiconductor |
|---|---|---|
| Measurement Principle | Electrochemical oxidation of ethanol | Resistance change in a heated sensing material |
| Ethanol Selectivity | Generally higher | Generally lower than fuel cell systems |
| Susceptibility to Interference | Less susceptible to many common interfering compounds | More susceptible to certain volatile compounds |
| Warm-Up Behavior | Often little or no conventional sensor warm-up | Usually requires sensor heating before testing |
| Low-Level Measurement | Better suited to applications requiring stronger measurement confidence | More suitable for general or basic screening |
| Repeatability | Generally stronger | More dependent on operating conditions and product design |
| Long-Term Stability | Generally better for professional applications | Can be suitable when calibrated and maintained for its intended use |
| Manufacturing Cost | Higher | Lower |
| Typical Positioning | Professional, workplace, fleet, repeated testing | Consumer, personal, cost-sensitive applications |
| Best When | Measurement confidence and selectivity matter | Affordability and basic alcohol detection are priorities |
Why selectivity matters
Not Every Compound in Breath Is Alcohol
Exhaled breath and the surrounding environment may contain substances other than ethanol. Sensor selectivity helps reduce the chance that non-alcohol compounds influence the measurement.
Fuel Cell Selectivity
Fuel cell alcohol sensors are designed to be highly responsive to ethanol and are generally less susceptible to many common interfering compounds than typical semiconductor sensors.
Semiconductor Response
Semiconductor sensing materials may respond to a broader range of reactive gases and vapors, which is one reason they are more commonly used in cost-sensitive consumer products.
Note: The bars above are illustrative visualizations only and do not represent measured Airsense laboratory data. No alcohol sensor should be described as completely immune to all possible interfering substances.
Warm-up and readiness
How Quickly Is the Device Ready to Test?
Fuel cell and semiconductor systems differ in how the sensing element reaches operating condition. Airsense product examples make this difference easy to see.

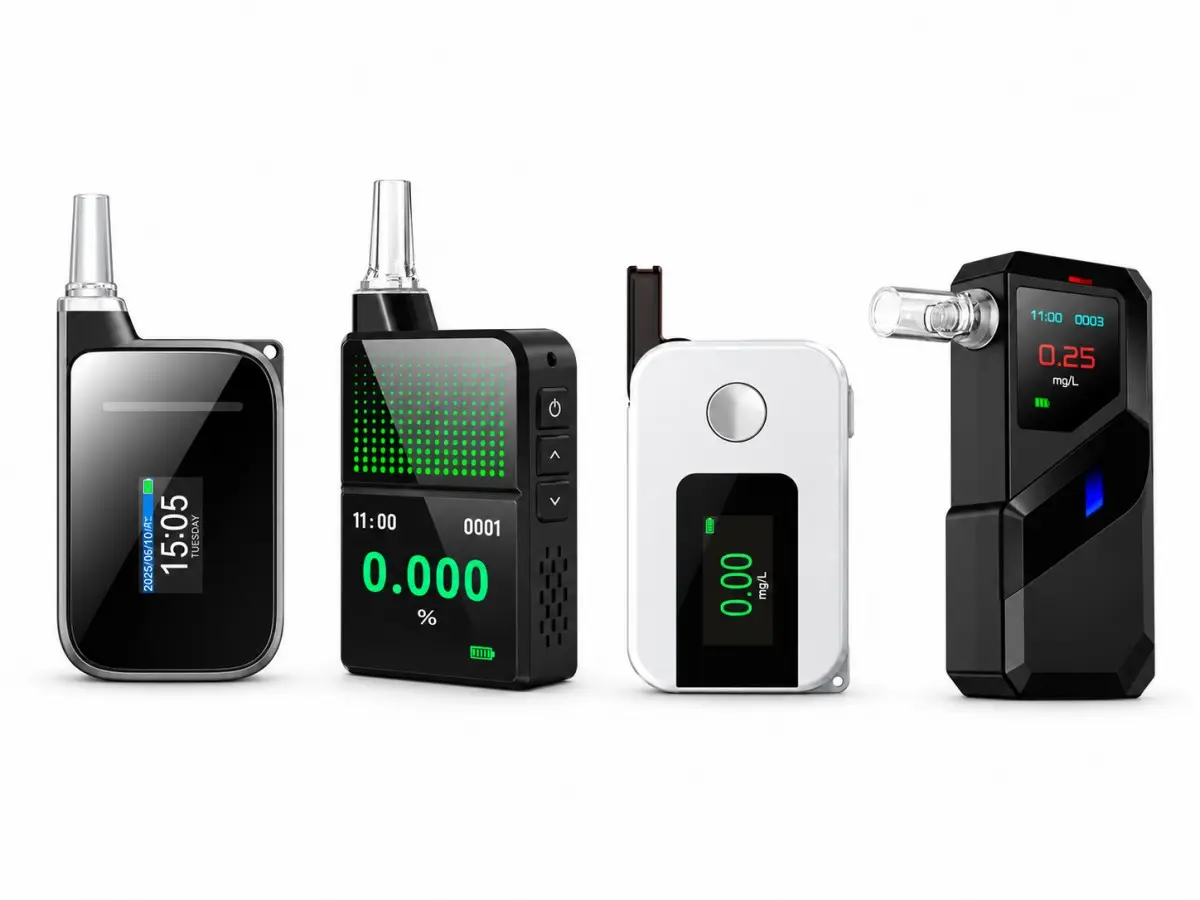

Fuel Cell Platforms
Fuel cell sensing systems do not rely on maintaining a heated semiconductor surface, so many designs can begin testing with little or no conventional warm-up.

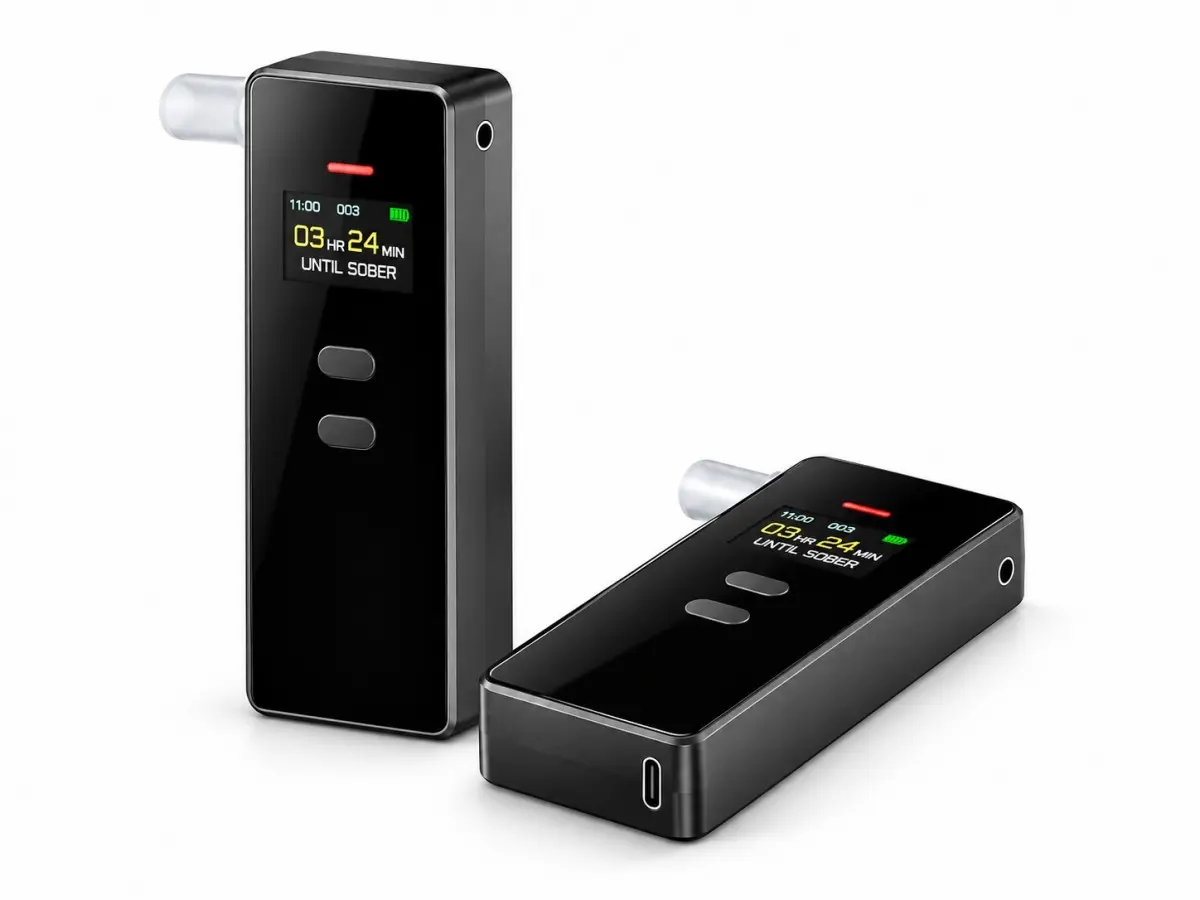

Semiconductor Platform
Reference: 0.050
For A5, the provided product specification indicates a longer warm-up may be required after extended periods without use.
Warm-up and readiness
How Quickly Is the Device Ready to Test?
Fuel cell does not automatically mean accurate. Semiconductor does not automatically mean inaccurate.
Sensor technology establishes the foundation of the measurement system, but the performance of a complete breathalyzer depends on how the whole instrument is designed, calibrated and maintained.
Cost and product positioning
Why Fuel Cell Breathalyzers Usually Cost More
Cost differences come from the sensing technology itself, materials, manufacturing requirements and the type of product the sensor is designed to support.
Higher Upfront Cost
Fuel Cell Platform
Fuel cell sensors generally use more complex electrochemical structures, catalytic materials and tighter production requirements.
- Higher ethanol selectivity
- Better repeatability for demanding applications
- Professional product positioning
- Better suited to frequent or repeated testing
Lower Upfront Cost
Semiconductor Platform
Semiconductor sensors offer a cost-effective path for consumer-oriented products and applications where basic alcohol screening is sufficient.
- Lower sensor and BOM cost
- Suitable for larger-volume consumer products
- Appropriate where affordability is a key requirement
- Useful for personal and basic screening use cases
Selection guide
Which Sensor Technology Should You Choose?
The best choice depends on application, testing frequency, target price and the level of measurement confidence required.
Choose Fuel Cell If...
- Alcohol selectivity is important
- The device will be used frequently
- Repeatability matters
- Workplace or fleet screening is required
- Professional positioning is important
- Long-term measurement stability matters more than lowest cost
Airsense platforms: K1, H3, H3 Pro, S1
Choose Semiconductor If...
- Cost is a major priority
- The device is designed for personal or consumer use
- Testing frequency is relatively low
- Basic alcohol screening is sufficient
- You need a cost-effective platform for larger-volume programs
Airsense platforms: A5
Airsense sensor platforms
From Sensor Technology to Real Products
Airsense uses different sensing and sampling architectures across its product range, allowing customers to choose between compact, professional and cost-sensitive platforms.

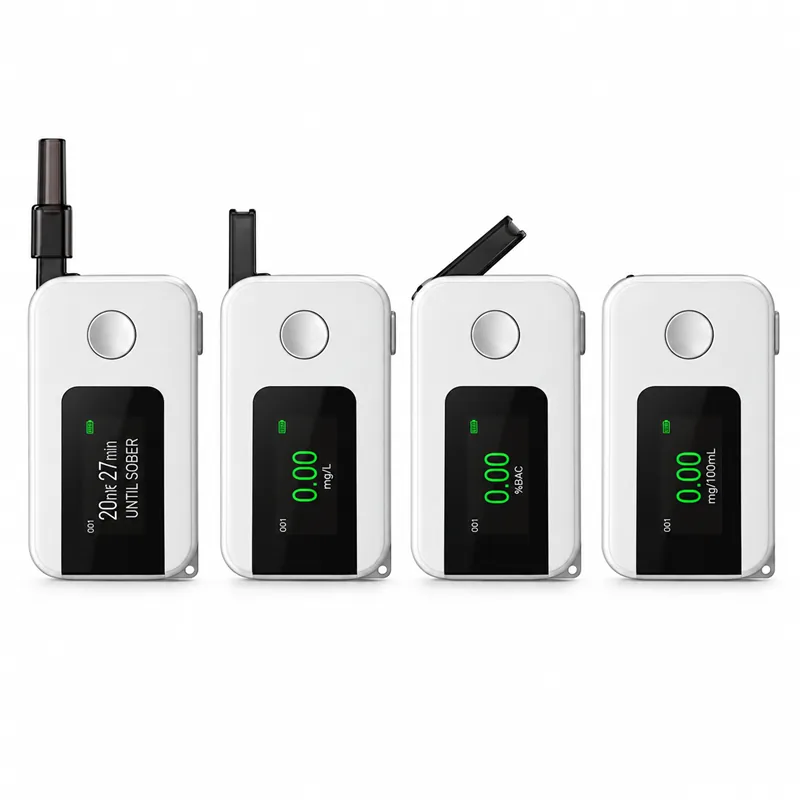

K1
Compact Fuel Cell Breathalyzer
- Fuel-cell sensing platform
- 0 s warm-up
- Compact portable design
View K1 →

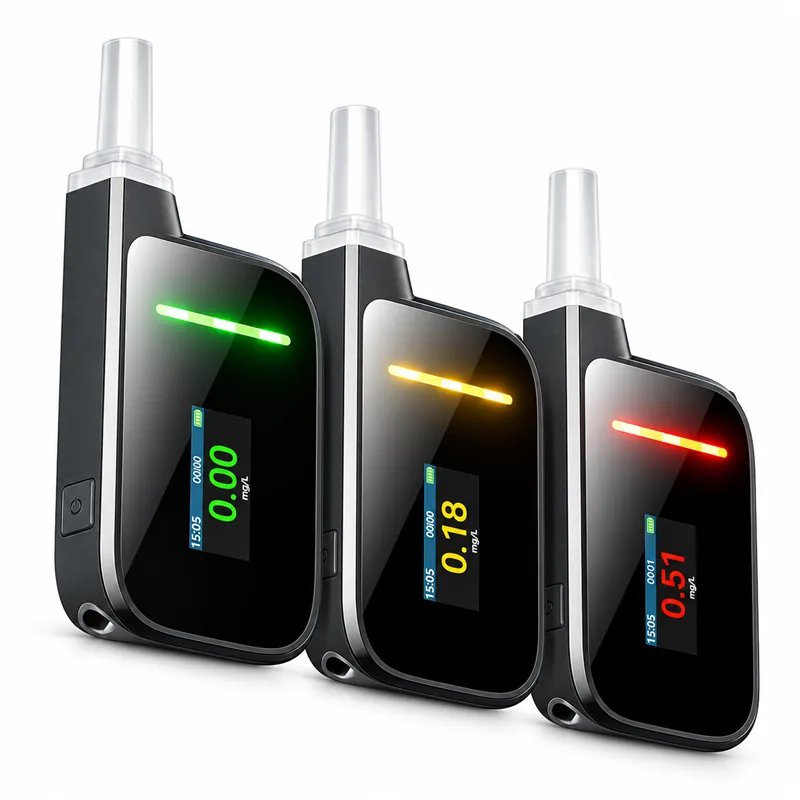

Fuel Cell Breathalyzer
- Electrochemical sensor
- 0 s warm-up
- 2,000 test records
View H3 →

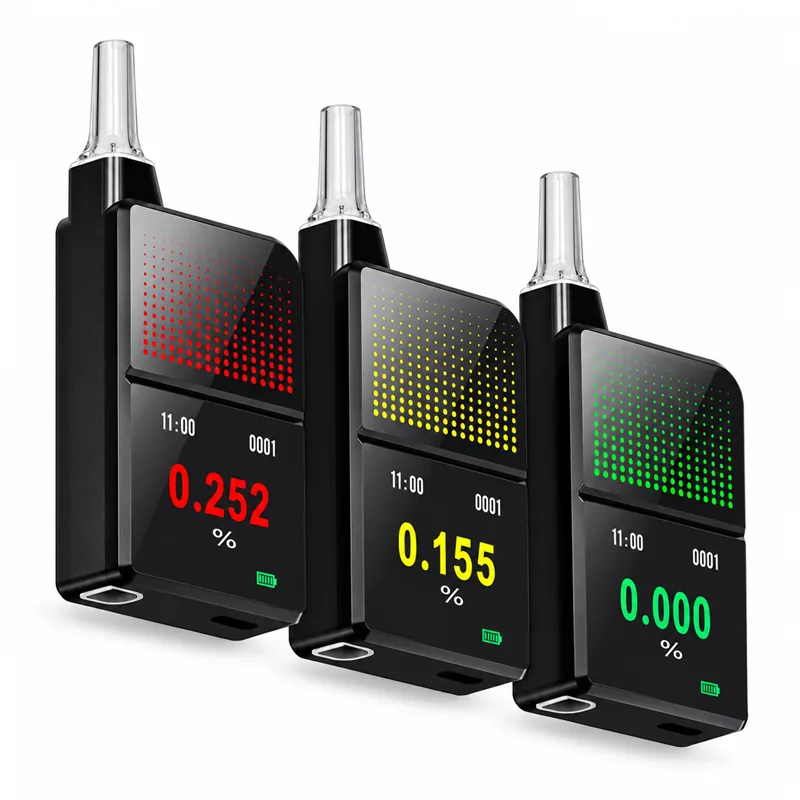

Pump-Sampling Fuel Cell Breathalyzer
- Fuel-cell sensor
- Active pump sampling
- 0 s warm-up
View H3 PRO→

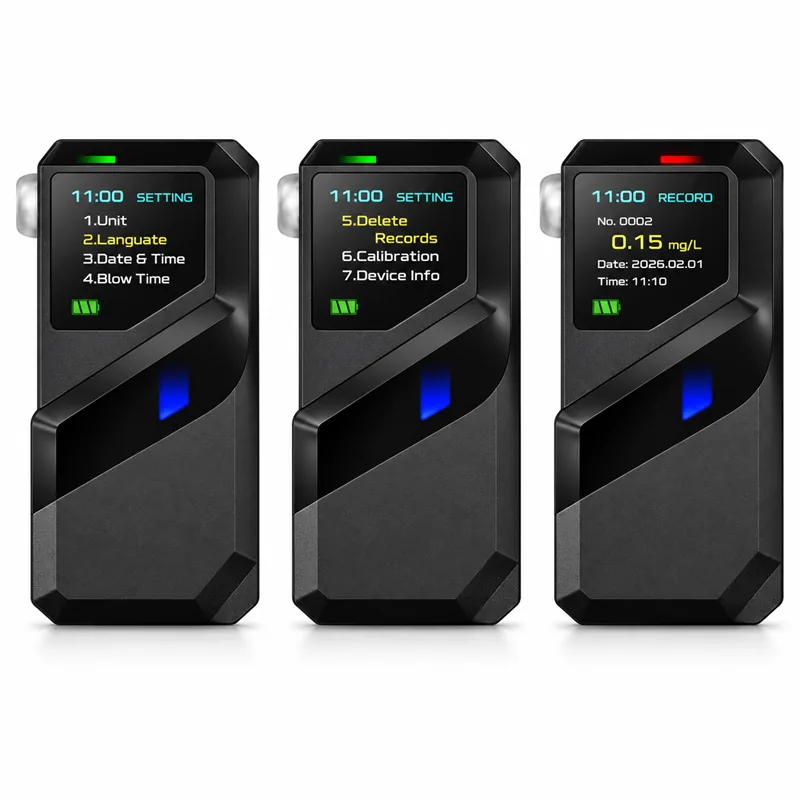

Professional Fuel Cell Breathalyzer
- Active pump sampling
- Replaceable sensor
- 10,000 records / Bluetooth
View S1→
Semiconductor Breathalyzer
- Planar chip semiconductor sensor
- 20 s standard warm-up
- 500 records / Bluetooth
ViewA5→
OEM / ODM selection
Choosing a Sensor Platform for Your OEM Breathalyzer
Sensor selection should be based on the intended user, testing frequency, target price, measurement requirements and market positioning—not simply on which sensor is more expensive.
Airsense can help evaluate the right platform for consumer, workplace, fleet and professional alcohol-testing projects.
Target Application
Personal, workplace, fleet or professional.
Target Price
Consumer-level or professional positioning.
Testing Frequency
Occasional or repeated testing
Measurement Requirements
Basic screening or higher repeatability.
Product Lifecycle
Consumer product or maintainable professional equipment.
Functions & Connectivity
Storage, Bluetooth, pump sampling and other features.
Frequently asked questions
Fuel Cell vs Semiconductor FAQ
Common questions buyers ask when comparing breathalyzer sensor technologies.
Is a fuel cell breathalyzer always more accurate?
No. Fuel cell technology offers important advantages in ethanol selectivity, repeatability and stability, but complete measurement performance also depends on breath sampling, electronics, calibration, algorithms and operating conditions.
Are semiconductor breathalyzers reliable?
Yes, when designed, calibrated and used appropriately for their intended application. Semiconductor sensors are commonly used in consumer and cost-sensitive products where professional-level selectivity may not be required.
Why are fuel cell breathalyzers more expensive?
Fuel cell sensors generally use more complex electrochemical structures, catalytic materials and tighter manufacturing controls, which increases component and production cost.
Do fuel cell sensors need calibration?
Yes. Fuel cell sensors still require periodic accuracy checks and calibration because sensor response can change over time and with repeated use.
Which sensor is better for workplace testing?
Fuel cell technology is generally preferred where repeated testing, ethanol selectivity and measurement consistency are important.
Which technology is better for an OEM consumer breathalyzer?
That depends on target price, expected testing frequency and required performance. Semiconductor technology can be suitable for cost-sensitive consumer products, while fuel cell technology supports more professional positioning.
